iMOW Series

ICE251

5-Year Battery Warranty

Heavy-Duty Diesel Engine

Nationwide After-Sales Support

Telematics Included

Technical Specifications

Capacity

2.5t

Lifting height

3000mm (max 6000mm)

Battery

80V/205Ah LFP Li-ion

Drive motor

AC drive, 10kW

Lift motor

16kW at S3 15%

Overall length

3573 mm

Overall width

1154 mm

Service weight

3770 kg

Travel speed

11/12 km/h (laden/unladen)

Lifting speed

0.28/0.37 m/s (laden/unladen)

Max. gradeability

15/15%

Tyre type

Pneumatic

Wheelbase

1595 mm

Turning radius

2290 mm

IPX rating

IPX4 water-protected

Sound level

< 74 dB(A)

Technology

Lithium-ion (LFP), Telematics

Description product

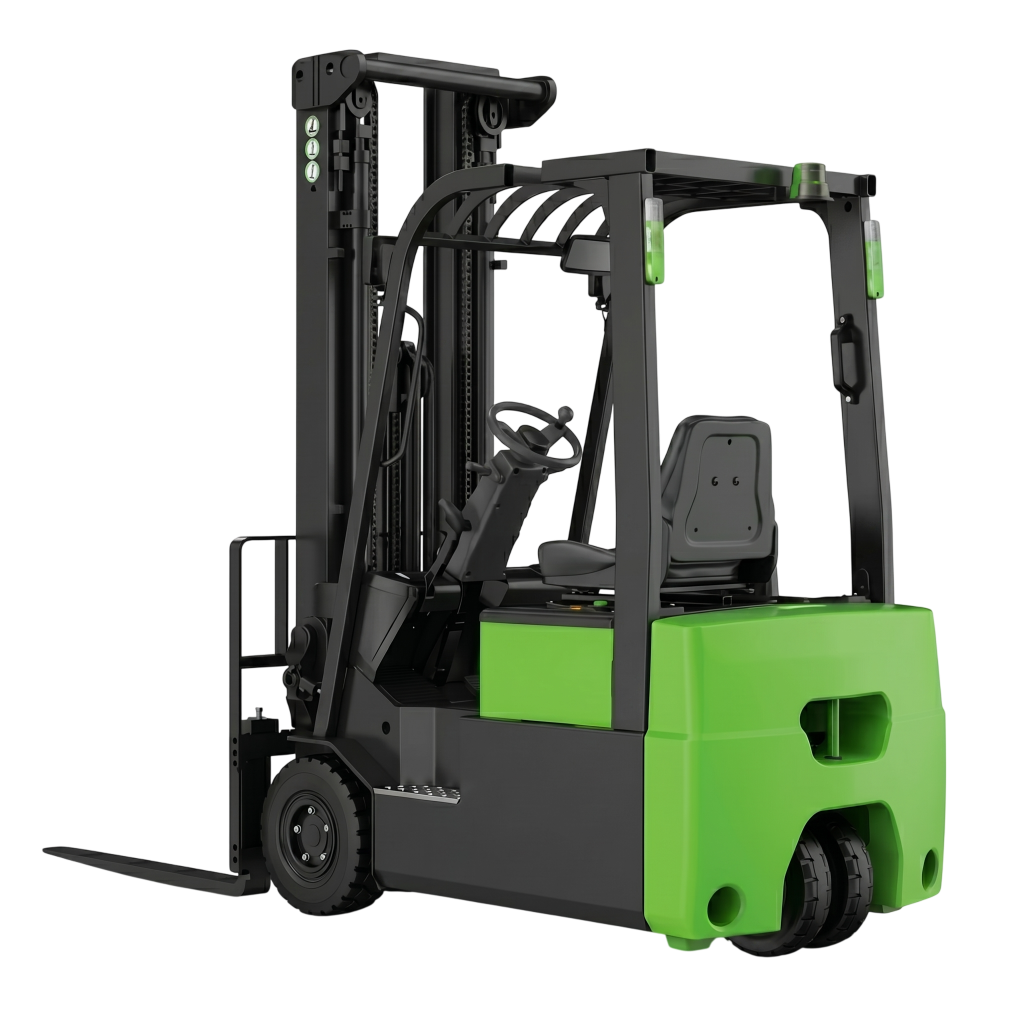

ICE251 – iMOW Electric Counterbalance Forklift Truck 2.5T. A 2.5-ton electric counterbalance forklift with LFP Li-ion technology, an 80V/205Ah battery, AC drive motor, and a compact design 5% smaller than a regular IC forklift. Part of the iMOW lineup by EP Equipment.

Lithium-ion Technology

ICE251 adapts LFP Li-ion battery that prevents the battery from self-ignition and ensures safe operation. It supports opportunity charging so it can be charged at any preferable time during the day without disrupting working schedules.

Low TCO

Comparing to a diesel forklift truck, ICE251 saves 30%–50% of energy cost with Li-ion technology. There is no maintenance fee as the truck has no air filter, oil filter, engine oil, or starter battery installed.

Compact Size

The overall length of ICE251 is 3573 mm, which is 5% more compact in size than a regular IC forklift, making it ideal for use in narrow aisles.

IPX4 Rated Water-Protected Design

The ICE251 is IPX4 rated, protecting the truck from splashes of water from different angles. The waterproofed design allows the truck to be operated outdoors, even in the rain.

Telematics

ICE251 offers EP’s latest Telematics system, providing the following features to facilitate your fleet management:

  • Truck location in real-time
  • Reports of truck usages and diagnosis
  • Li-ion battery condition analytics
  • Updates on card access registration
